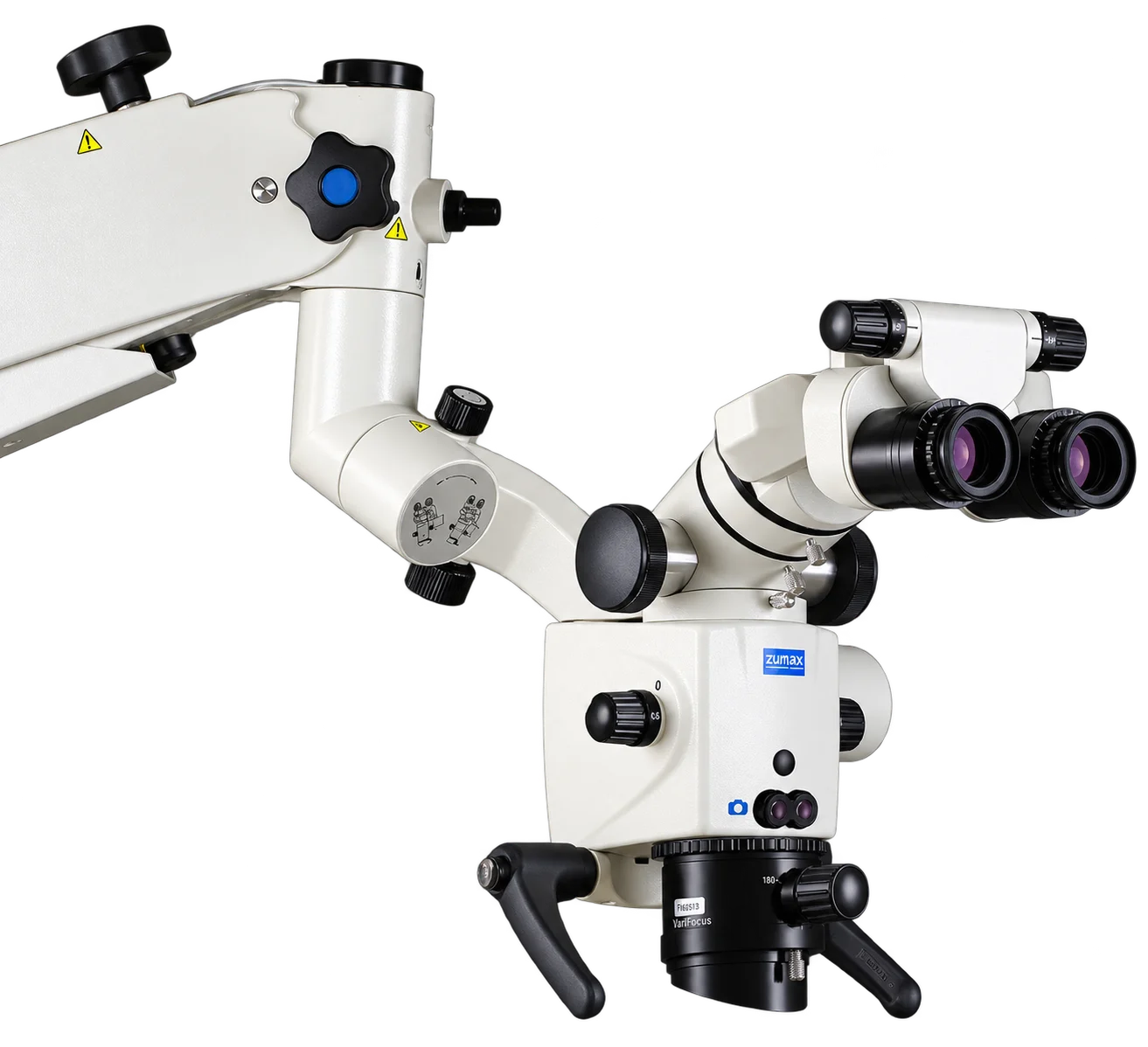

OMS2350

Zumax

A dental microscope with a six-step magnification changer for endodontics, restorative work and surgery — from a whole-arch view to close examination. A binocular head that tilts through 0–180° and a pendulum function (25° to each side) keep the clinician upright even when the microscope is tilted, and the balancing arm makes repositioning smooth. Integrated LED lighting comes with a yellow filter that prevents premature curing of composite and a green filter that improves contrast in tissue with a rich blood supply. The basic configuration has an f=250 mm objective with fine focus; a VarioDist objective with a 190–300 mm working distance is optional.

Request a quote 052-360-6406

Supply, installation and staff training by JK Dent
Full warranty
Service and maintenance — response within 24 hours

Key features

Six-step magnification changer — from the whole arch to fine detail
Binocular head tilting 0–180° with interpupillary adjustment — comfortable for clinicians of any height
Pendulum function: 25° tilt to each side without changing the eyepiece angle
Yellow filter against premature composite curing, green filter for contrast in highly vascular tissue
Wide-field 12.5× eyepieces with eyecups — suitable for eyeglass wearers
Options: VarioDist objective, integrated Full HD camera and a beam splitter for a camera

Technical specifications

Type: dental microscope with magnification changer
Magnification changer: six steps — 0.3× · 0.5× · 0.8× · 1.2× · 2× · 3×
Objective: f=250 mm with fine focus (12 mm range) · optional VarioDist 190–300 mm
Eyepieces: 12.5× wide-field (optional 10× · 16× · 20×)
Binocular head: 0–180° tilt, f=170 mm, interpupillary adjustment
Illumination: integrated LED, over 70,000 lux, 86 mm light spot (with 250 mm objective)
Filters: yellow and green, integrated
Mounting: mobile floor stand · optional ceiling, wall, fixed-floor or tabletop-clip mount
