OMS2380
Zumax

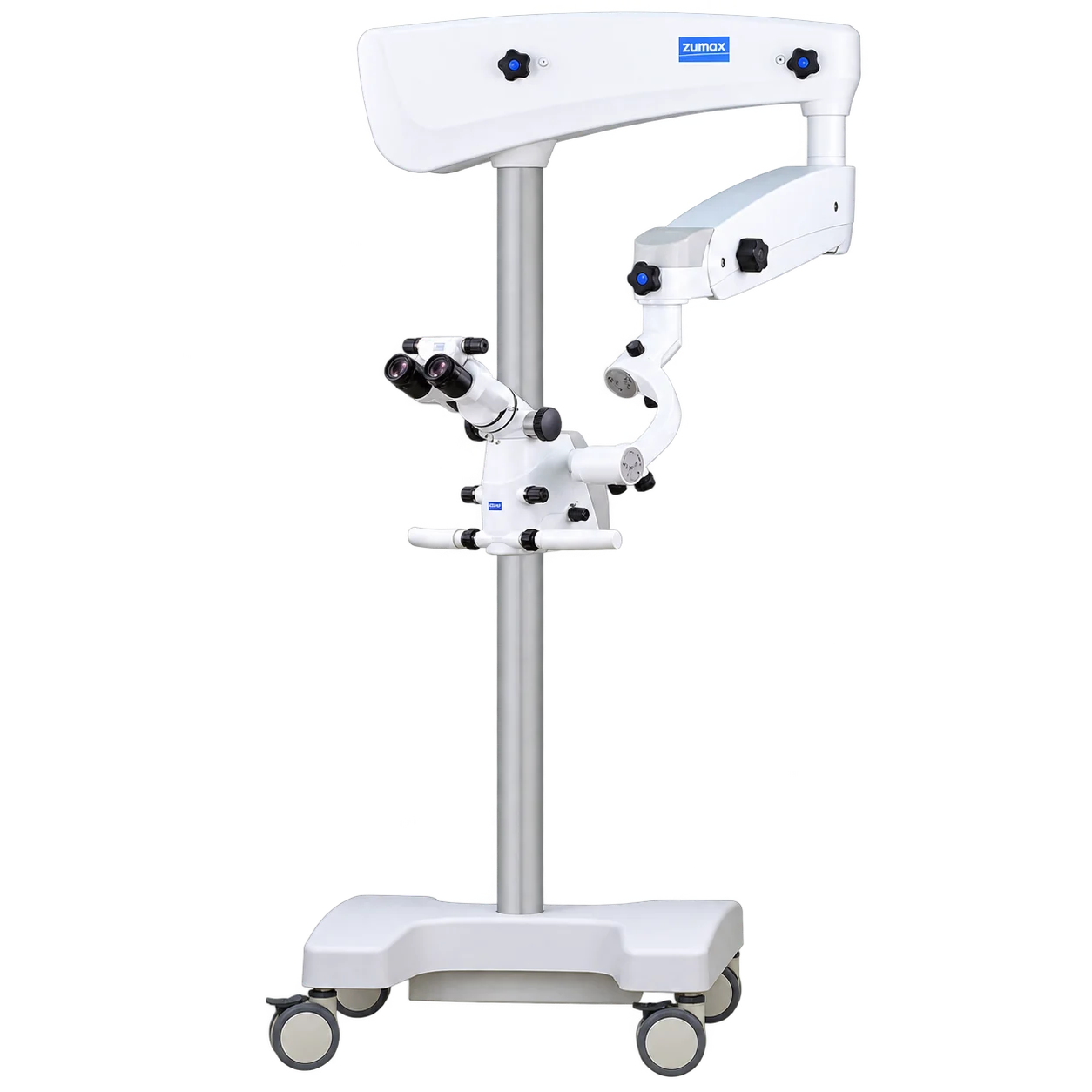

A dental microscope with continuous zoom from 1.8× to 19.4× for endodontics, restorative work and surgery — magnification changes smoothly. A VarioDist objective with a 200–450 mm focal range focuses at any depth of the oral cavity without moving the microscope, and the FreeMov balancing arm lets the head be moved with one hand and stay where it is placed. Thanks to the symmetrical design, zoom, focus and image capture are controlled with one hand from either side. The microscope supports the FluoDet fluorescence module (405 nm), which helps detect caries and identify excess resin, and a 4K imaging module for documentation, measurement and side-by-side comparison on screen. The light is a medical-grade LED with AntiReflect polarization to reduce glare.
- Supply, installation and staff training by JK Dent
- Full warranty
- Service and maintenance — response within 24 hours
Key features
- Continuous zoom 1.8×–19.4× — a smooth move from the whole arch to fine detail
- VarioDist objective, 200–450 mm — focus at any depth without moving the microscope
- FreeMov balancing arm — the head moves easily and stays in place
- Symmetrical design — zoom, focus and capture with one hand
- Supports the FluoDet fluorescence module (405 nm) for caries and excess-resin detection
- Supports a 4K imaging module — documentation, measurement and on-screen comparison
Technical specifications
- Type
- dental microscope with continuous zoom
- Magnification
- 1.8×–19.4× (zoom ratio 0.4×–2.4×)
- Objective
- VarioDist, 200–450 mm focal range
- Arm
- FreeMov balancing arm
- Illumination
- patented medical-grade LED · AntiReflect polarization to reduce glare
- Binocular tube
- tilting — horizontal viewing as the microscope tilts
- Operation
- one-handed, symmetrical design
- Supported modules
- FluoDet fluorescence (405 nm) · 4K imaging (3840 × 2160, Sony CMOS sensor) with built-in storage
- Optional accessories
- 30° and 45° optical extenders · beam splitter · camera and phone adapters · wireless foot pedal
Data as published by the manufacturer. Details vary by configuration — talk to us.
