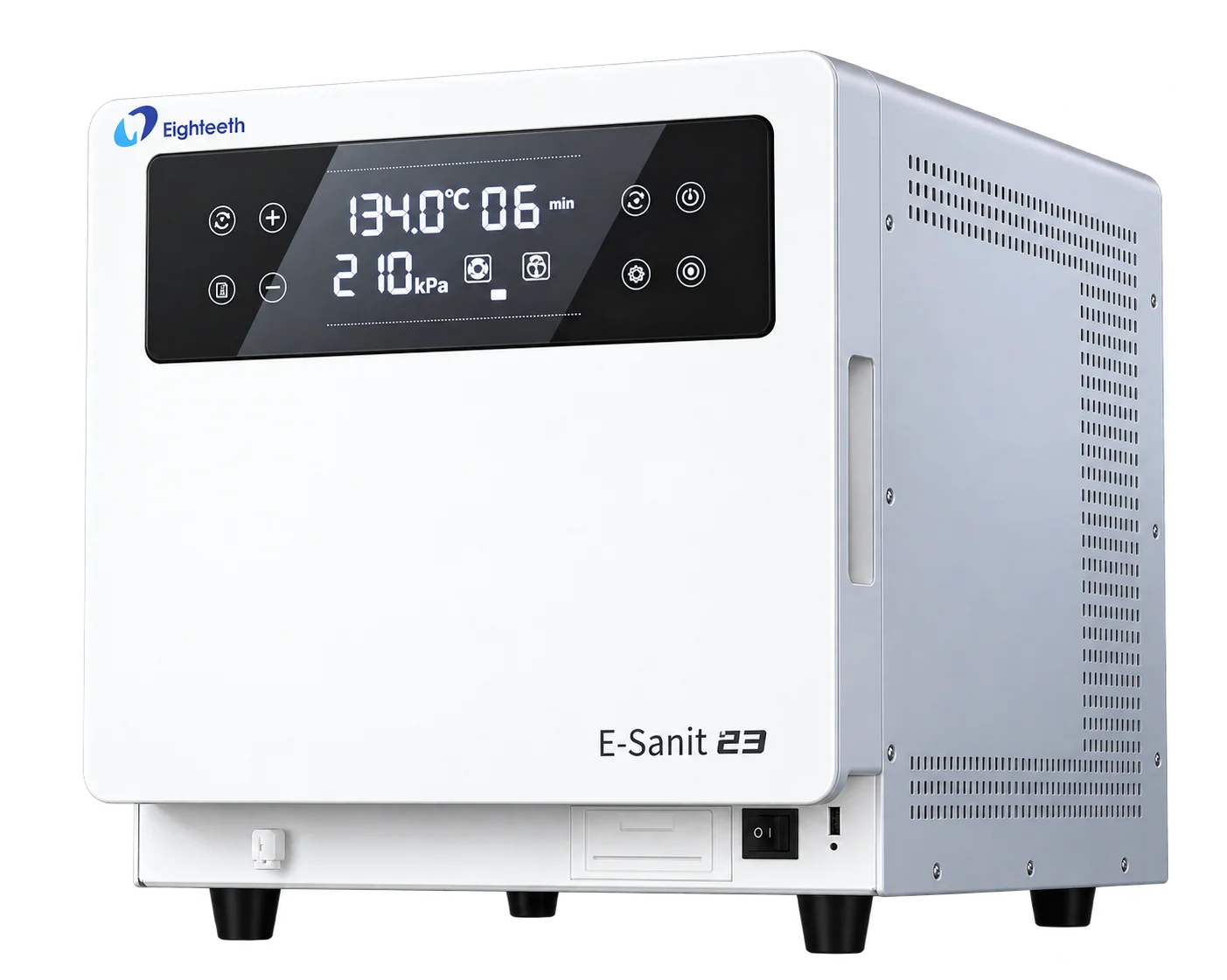

E-Sanit 23
Eighteeth
A 23-liter steam autoclave with EN 13060 type B cycles, for wrapped, unwrapped and hollow instruments, handpieces and textiles in the dental clinic. A mechanical vacuum removes air from the chamber before steam enters, so steam reaches narrow-lumen instruments and handpieces — where an air pocket would otherwise prevent sterilization. Five sterilization programs at 134°C and 121°C plus three test programs (Bowie-Dick, Helix and vacuum) cover daily work and monitoring. A built-in sensor warns of water shortage or substandard water quality, anti-siphon technology blocks liquid backflow, and the electric door closes with a dual lock.
- Supply, installation and staff training by JK Dent
- Full warranty
- Service and maintenance — response within 24 hours
Key features
- EN 13060 type B cycles — for hollow, wrapped and textile loads
- Eight programs: five sterilization programs and three tests (B&D, Helix, vacuum)
- Adjustable sterilization and drying times — to suit the load
- Built-in water sensor — alerts for water shortage and substandard water quality
- Dual-locking door, dual overheat protection and automatic pressure release above the limit
- LCD touch panel with real-time data to 1 kPa, and an optional built-in printer
Technical specifications
- Type
- small steam autoclave, EN 13060 type B and N cycles
- Chamber volume
- 23 L
- Chamber size
- 254 mm diameter × 455 mm depth
- Maximum load
- instruments 5.5 kg · textiles 1.8 kg · up to 1.8 kg per package
- Programs
- 134 Universal · 134 Fast · 121 Protective · 121 Fast · 134 Protein · B&D · Helix · Vacuum
- Cycle time
- about 35–60 min, depending on program
- Maximum water consumption
- 700 mL
- Noise
- up to 70 dB(A)
- Power
- 220 V AC · 50 Hz
- Dimensions
- 620 × 421 × 500 mm
- Weight
- 49 kg (66 kg with shipping packaging)
Data as published by the manufacturer. Details vary by configuration — talk to us.
